PATCRAFT
DICHROIC
All Patcraft running line flooring
products are priced by
" QUOTE REQUEST ONLY "
DichroicProduct SpecificationsCollection Name DichroicStyle Number I0544Product Type ModularConstruction Non-Woven CompositeFiber Type PET PolyesterDye Method 100% Solution Dyed English MetricTufted Yarn Weight 20.0 678.11 g/m²Finished Pile Thickness 0.053 1.35 mmTotal Thickness 0.146 3.71 mmProduct Size 24" x 24" 60.96 cm x 60.96 cmAverage Density 13585 25.30 kilotexSquare Yards per Box 8.0Secondary Backing EcoWorx® TilePerformance SpecificationsTraffic Class Heavy (TARR)Antimicrobial Assessment Passes (AATCC-174)(When installed using Shaw 5036 adhesive)Methenamine Pill Test Passes (DOCFF-1-70)Radiant Panel Class I (ASTM E-648)NBS Smoke Less than 450 (ASTM-E-662)Electrostatic Propensity Less than 3.5 kV (AATCC-134)CRI Green Label Plus Certified GLP 0520ADA Compliance This product meets the guidelines as set forth in the Americans with Disabilities Act for minimum static coefficient of friction of 0.6 for accessible routes.Warranty InformationCarpet Tile Lifetime Commerical Limited Warranty

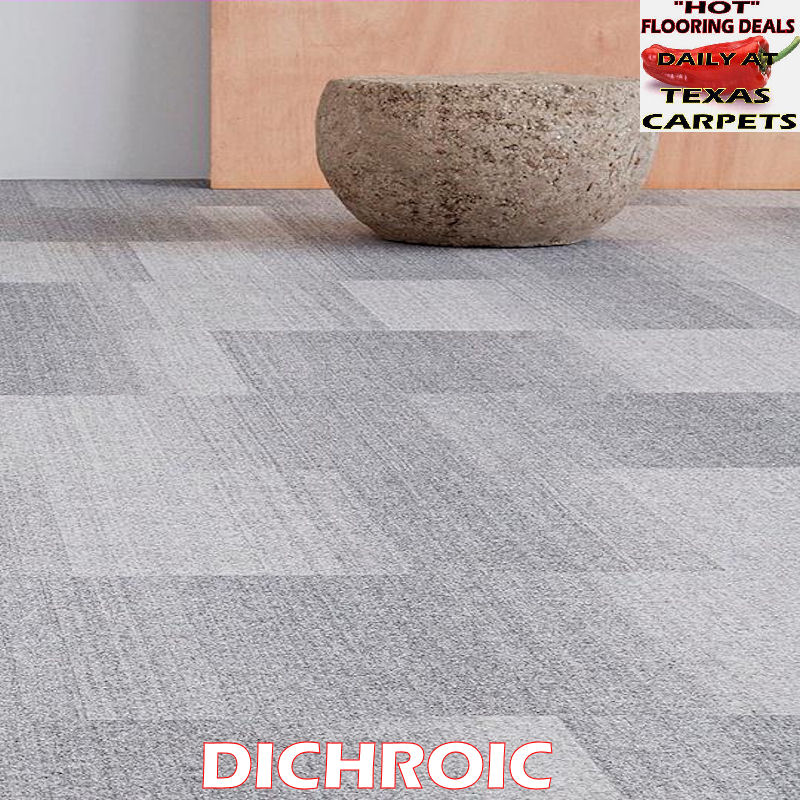

Dichroic
Product Specifications
Collection Name Dichroic
Style Number I0544
Product Type Modular
Construction Non-Woven Composite
Fiber Type PET Polyester
Dye Method 100% Solution Dyed
English Metric
Tufted Yarn Weight 20.0 678.11 g/m²
Finished Pile Thickness 0.053 1.35 mm
Total Thickness 0.146 3.71 mm
Product Size 24" x 24" 60.96 cm x 60.96 cm
Average Density 13585 25.30 kilotex
Square Yards per Box 8.0
Secondary Backing EcoWorx® Tile
Performance Specifications
Traffic Class Heavy (TARR)
Antimicrobial Assessment Passes (AATCC-174)
(When installed using Shaw 5036 adhesive)
Methenamine Pill Test Passes (DOCFF-1-70)
Radiant Panel Class I (ASTM E-648)
NBS Smoke Less than 450 (ASTM-E-662)
Electrostatic Propensity Less than 3.5 kV (AATCC-134)
CRI Green Label Plus Certified GLP 0520
ADA Compliance This product meets the guidelines as set forth in the Americans with Disabilities Act for minimum static
coefficient of friction of 0.6 for accessible routes.
Warranty Information
Carpet Tile Lifetime Commerical Limited Warranty
